Description:

Universal new radiator cooling fan blade
black
Easy to install directly without modification
Install or replace OE, push-pull
Professional installation is strongly recommended
Does not include instructions.

Note: Without control module

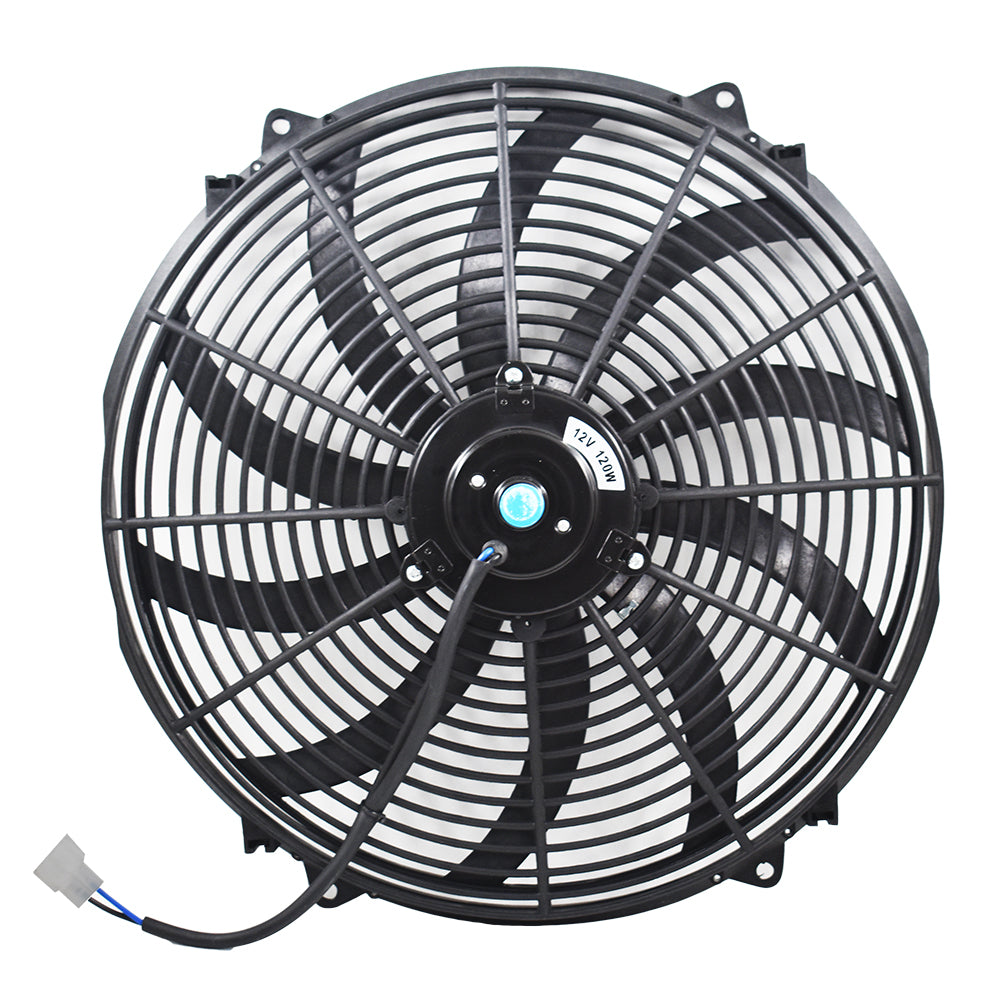

Electric fan:
16 12-inch reversible electric cooling fans.
Universally applicable to hot pressing rods, classic engines and modern vehicles.
The powerful 120 watt electric motor will keep your electric motor cool.
It is configured as an air extractor out of the box.
The blades and wiring can be reversed to make the fan generate air propulsion.
Used in radiators, oil coolers, transmission coolers, condensers, etc.

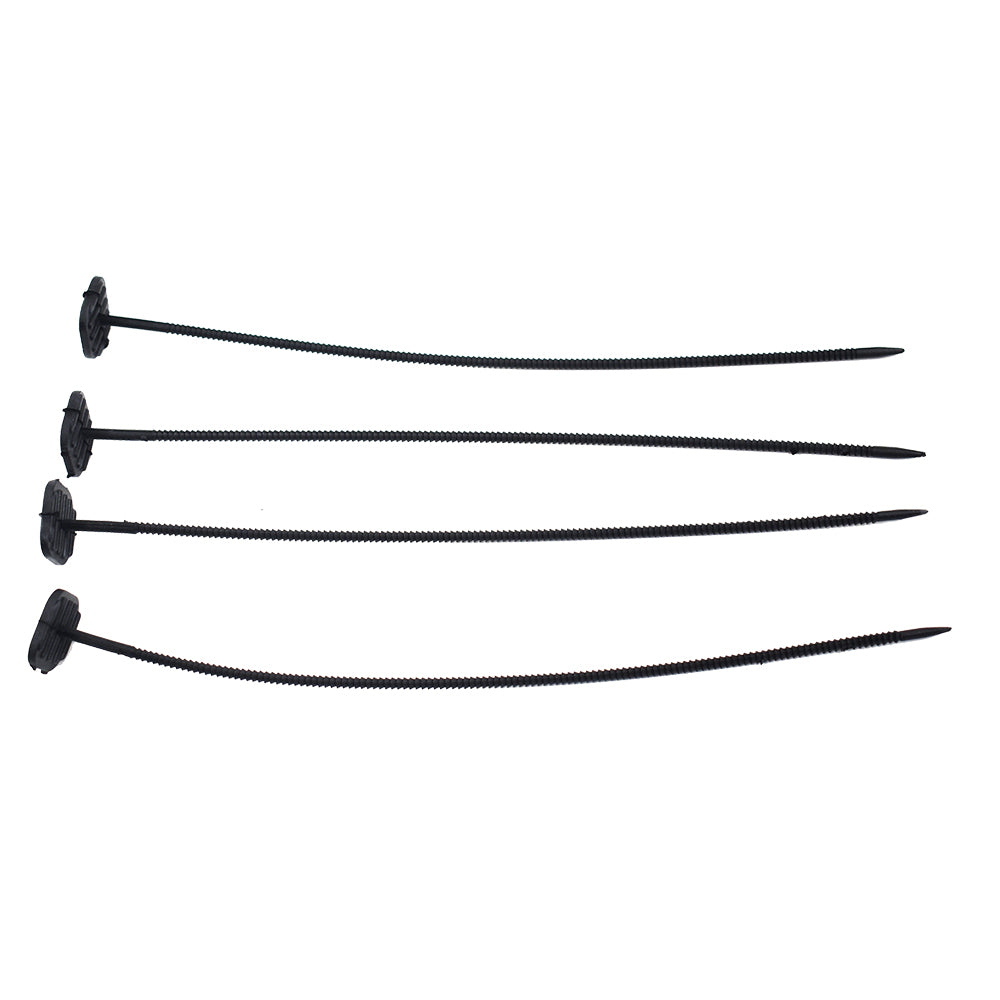

Includes tripod and tether strap kit.
Blade size: 15 inches
Blade type: curved
Motor size: 120 watts
CFM index: 3000
Speed index: 2050
Release: 15 amps
Material: plastic fairing/steel motor

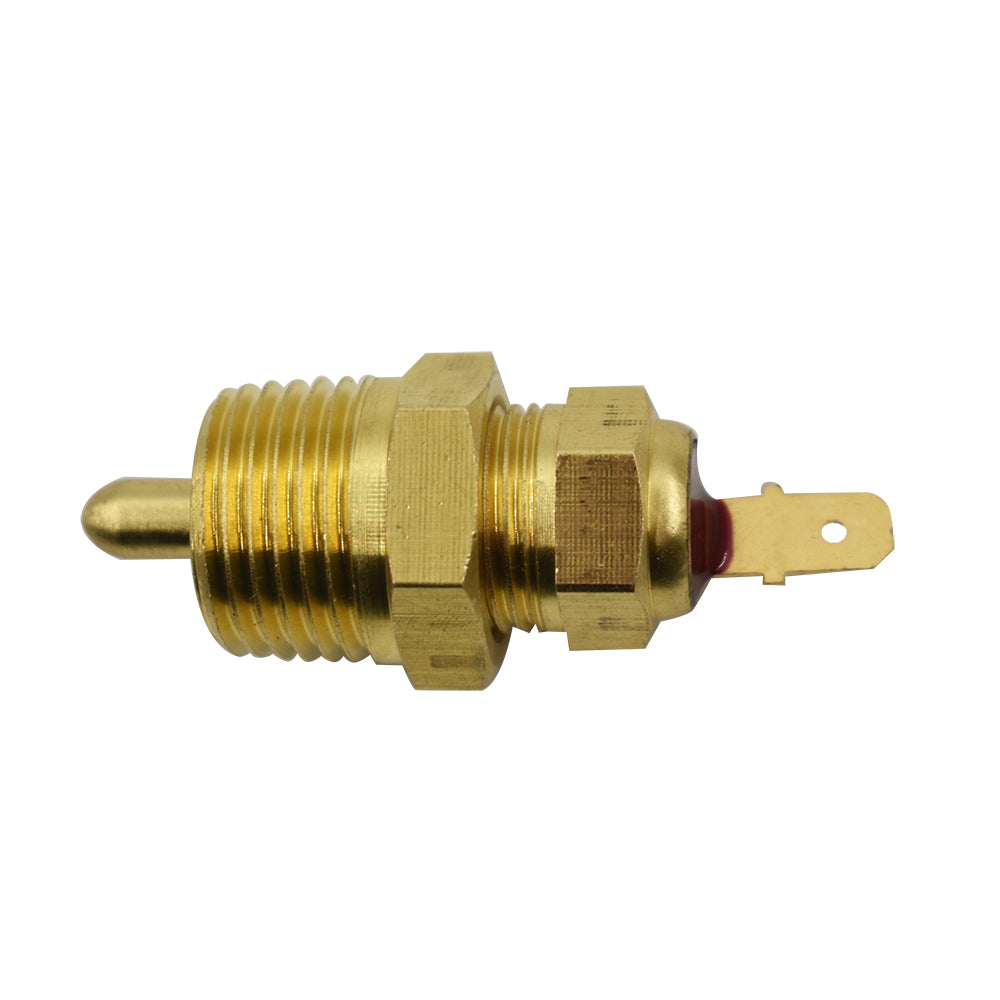

Thermostat kit:
GM is suitable for any automotive application.
It is activated by grounding the electric fan at a preset temperature.
Start temperature 180'F, end temperature 165'F.
Supplied with 3/8" NPT threaded brass probe and 1/2" NPT adapter.
The probe usually passes through the radiator, outlet pipe or manifold.
Application: universal

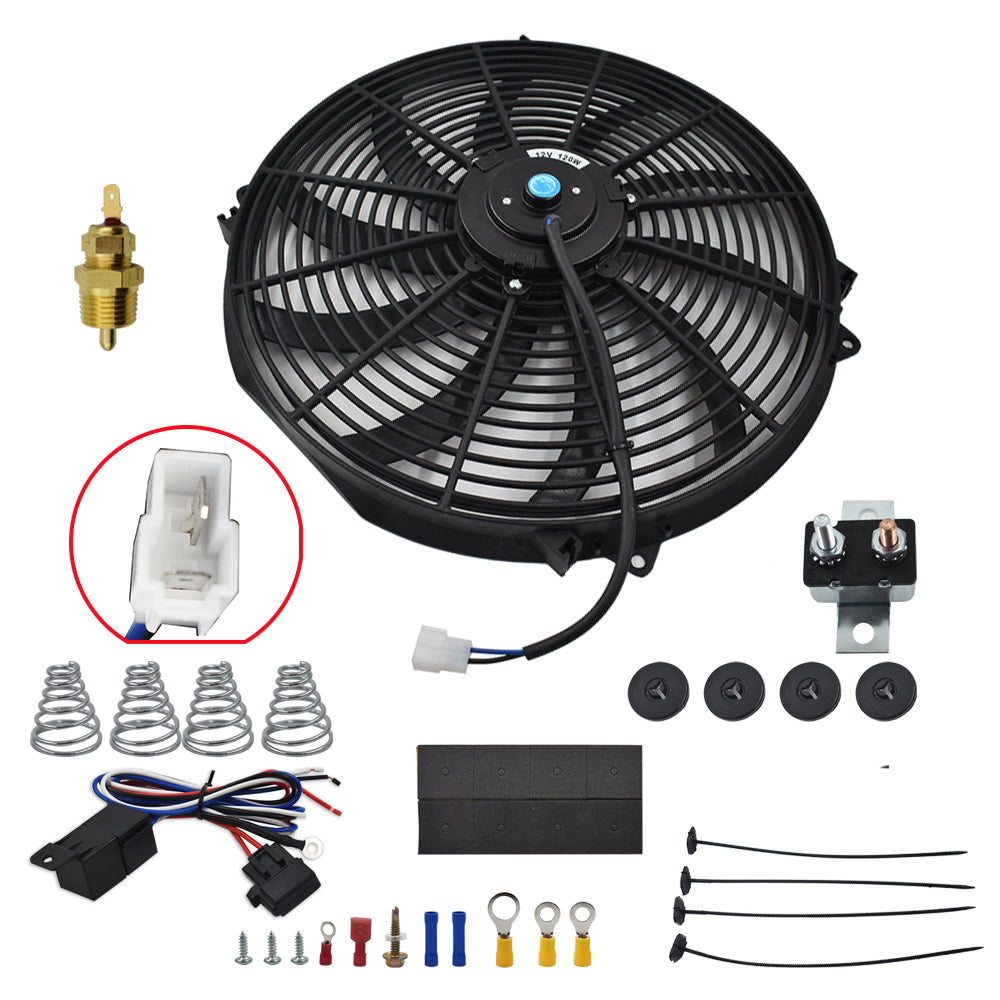

The package includes:

(1) -3/8" NPT threaded thermostat
(1) -1/2" NPT adapter

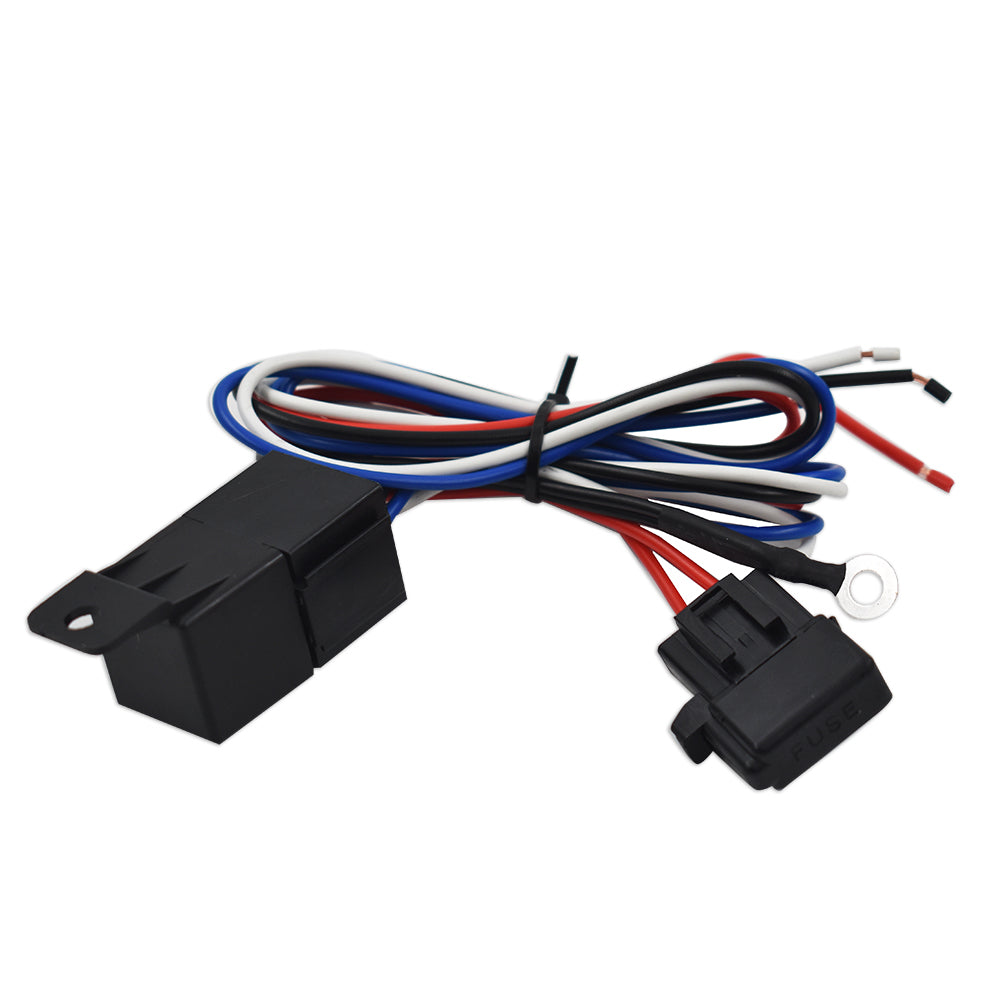

(1)-Wire harness with installation
(1) -40 amplifier relays

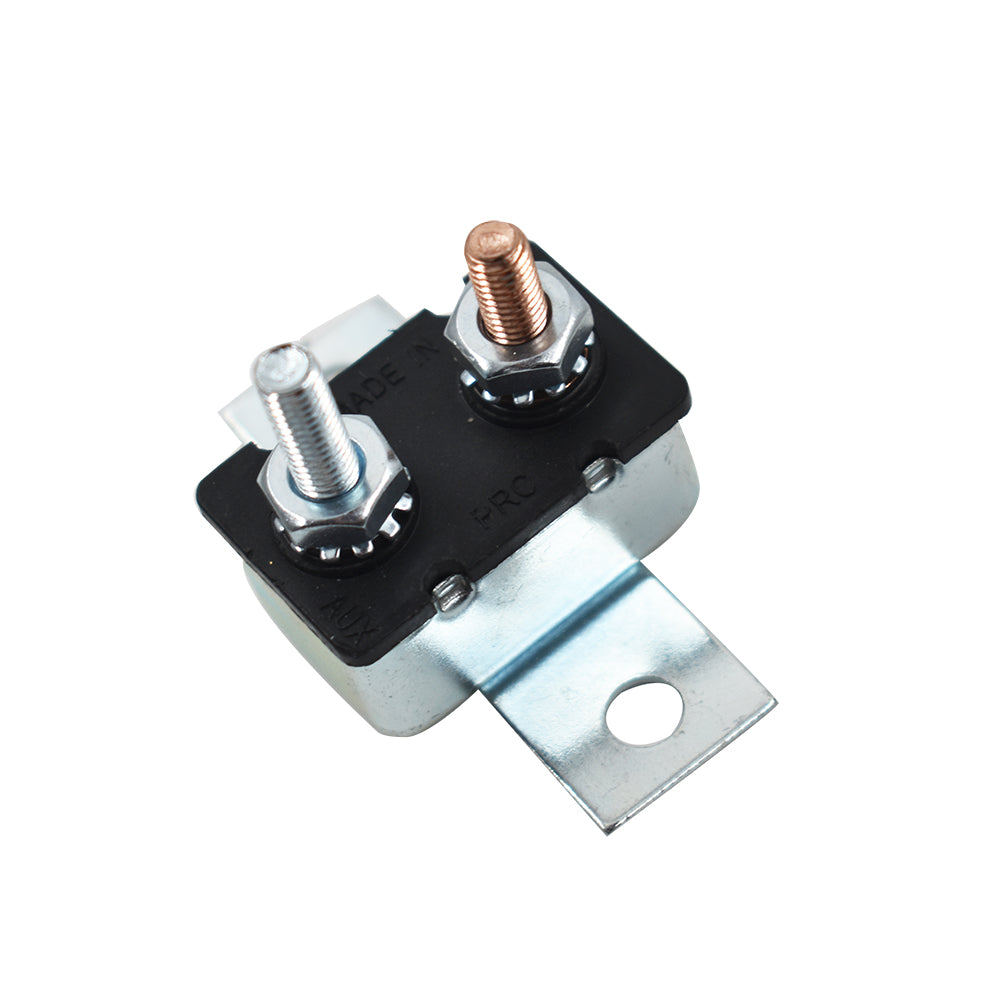

(1) -30 amp circuit breaker
(3)-Small ring terminal
(1)-Large ring terminal
(1)-Wire harness installation screw
(2)-Docking connector
(2) Piece screw
(1)-Female connector
